Semi-Gantry Portal Type Machining Center Kamioka LG-2500
Semi-Gantry Portal Type Machining Center Kamioka LG-2500
Online only
Kamioka LG-2500
New product
FEATURES
 |
 |

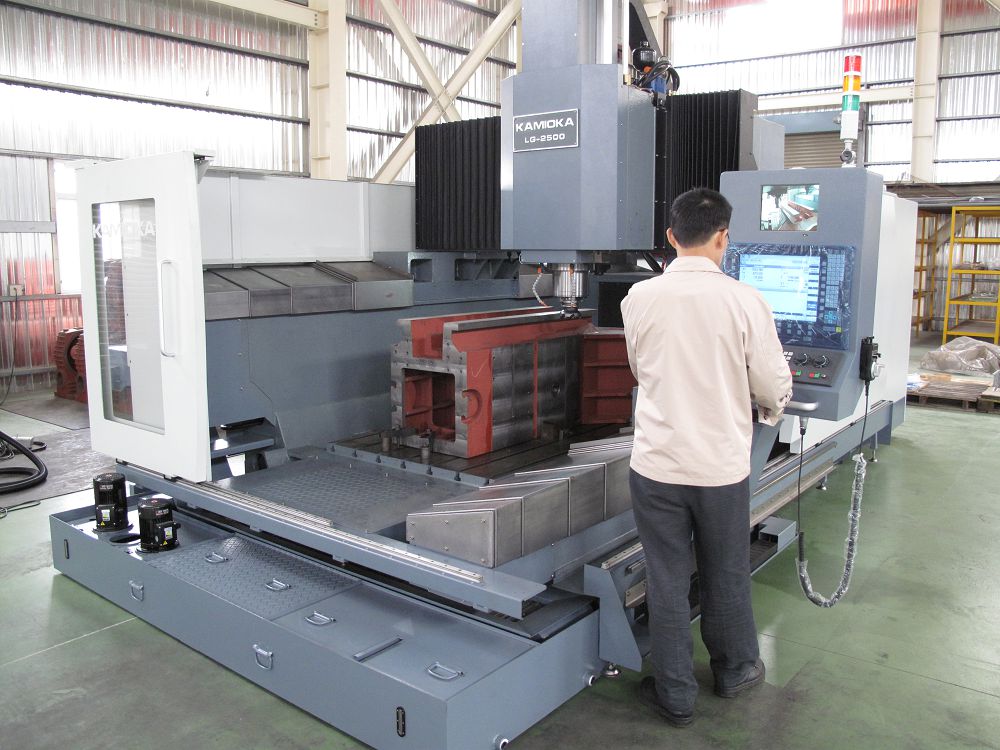

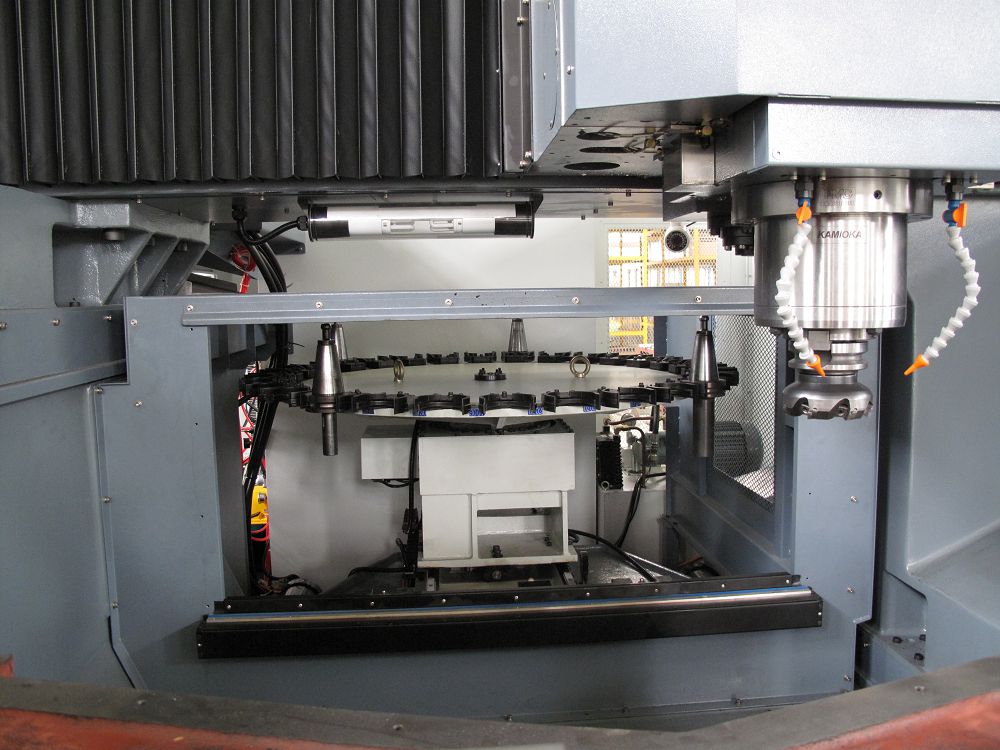

| Rock solid one piece casted L-shape machine body with best accessibility and control for users | Umbrella 30 pieces tool magazine |
 |
 |

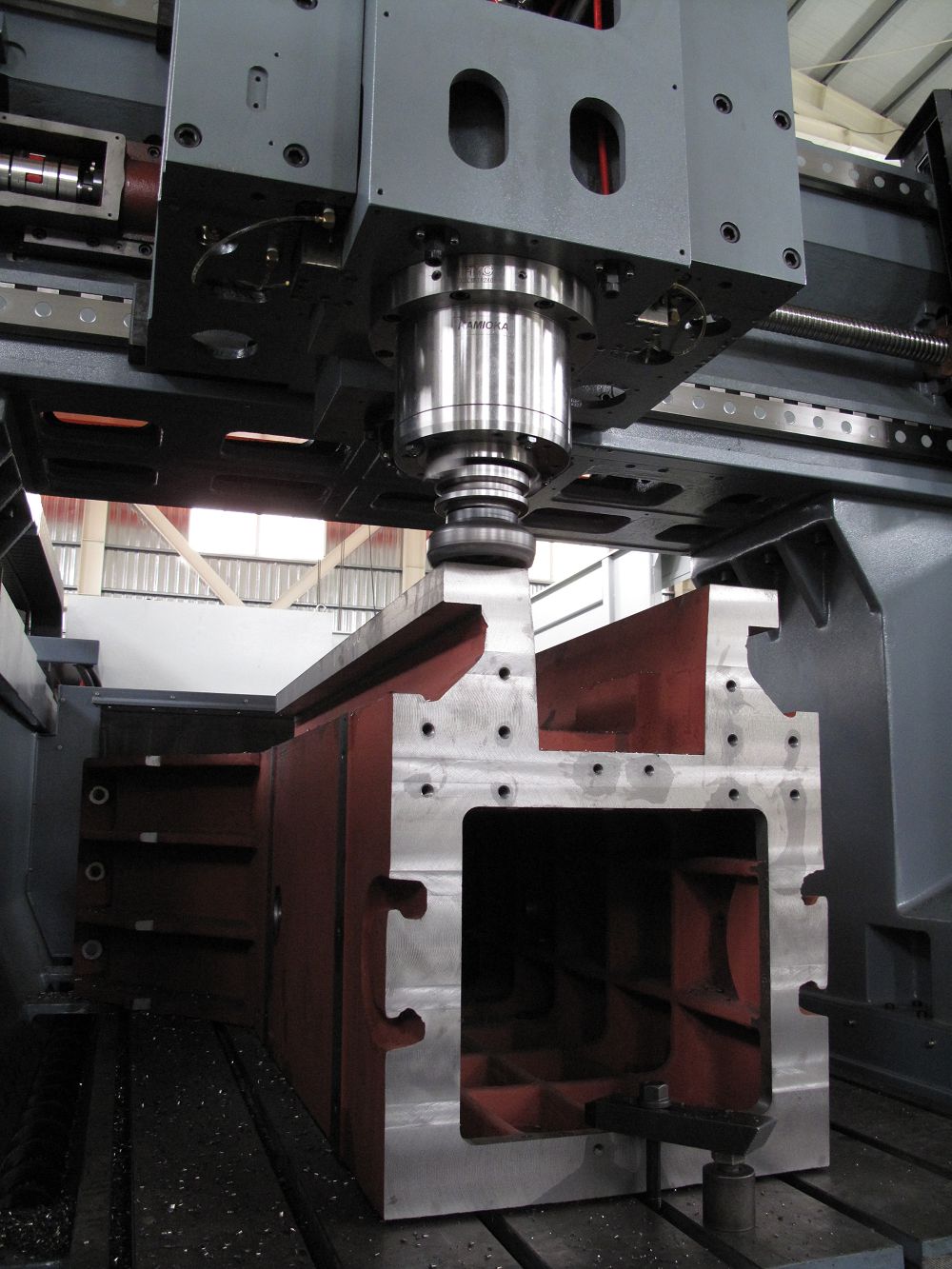

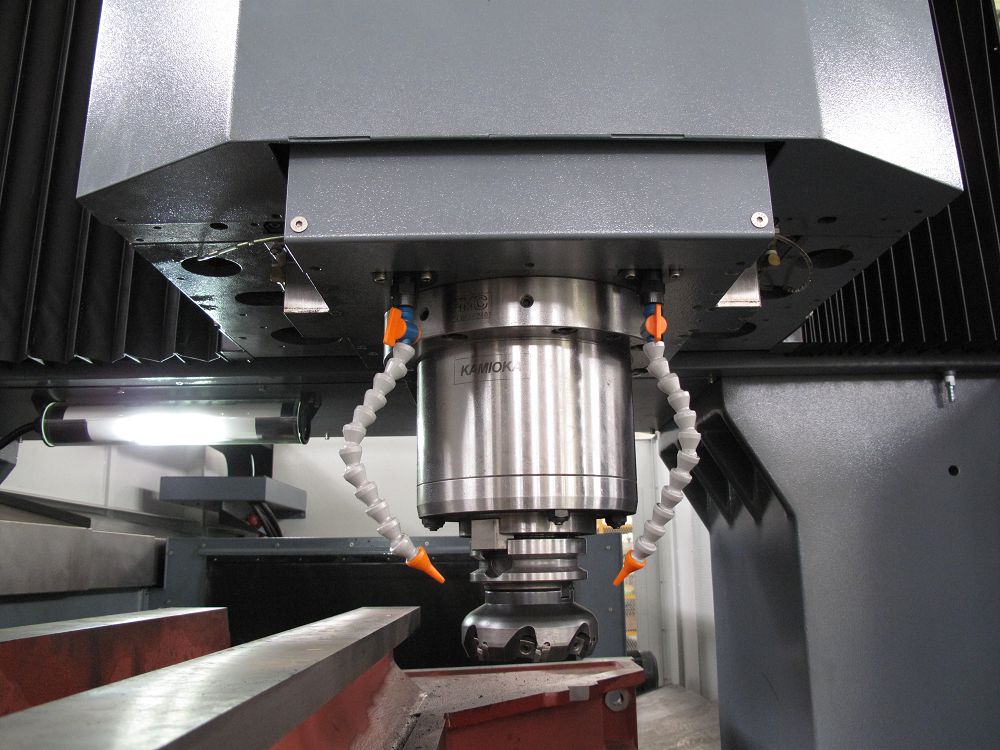

| 1.5m span semi-gantry structure for various kinds of heavy duty machining challenges. The sufficient working space (2400x1100mm) for middle and large size components machining. | Powerful 8000rpm BT50 direct drive spindle or compatible with ZF gear box |
| PATENTS | |
 |

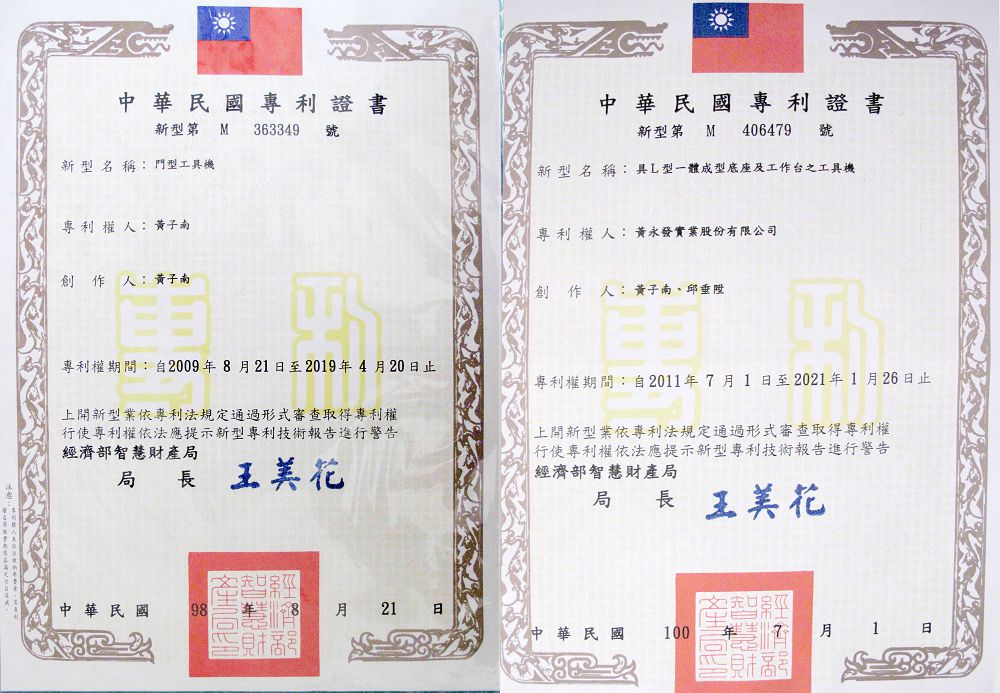

Registered patents for its asymmetric structure of semi-gantry design (No. M363349, M406479) |
| Item/Model No. | Unit | LG-2500 |
| Travel | ||
| X/Y/Z | mm (in.) | 2,500/1,150/620 (98.43/45.28/24.41) |
| Z axis-Optional | mm (in.) | - |
| Distance between Columns | mm (in.) | 1,500 (59.06) |
| Table | ||
| Dimension | mm (in.) | 2,400×1,100 (94.49×43.31) |
| T-slot (W×No.×CD) | mm | 22×7×170 |
| Max. Table Loading | kg (lb.) | 9,000 (19,800) |
| Spindle | ||
| Max. Speed-Standard | rpm | Direct drive 8,000 |
| Max. Speed-Optional | rpm | Direct drive 10,000 or ZF Gear 6,000 |
| Spindle Motor | kW (HP) | 15/18.5 (20/25) |
| Spindle Taper | BT50 | |
| Spindle Nose to Table Surface | mm (in.) | 150~770 (5.91~30.31) |
| Feedrate | ||
| Cutting Feedrate | mm/min (ipm) | 1~10,000 (0.04~393.7) |
| X axis Rapid Traverse | mm/min (ipm) | 20,000 (787.4) |
| Y axis Rapid Traverse | mm/min (ipm) | 20,000 (787.4) |
| Z axis Rapid Traverse | mm/min (ipm) | 15,000 (590.55) |
| ATC | ||
| Tools Capacity-Standard | pcs | Umbrella 30 |
| Tools Capacity-Optional | pcs | - |
| Max. Tool Dia. | mm (in.) | ø110 (ø4.33) |
| Max. Tool Length | mm (in.) | 300 (11.81) |
| Max. Tool Weight | kg (lb.) | 15 (33) |
| General Information | ||
| Electrical Power Capacity | KVA | 40 |
| Dimension (W×D×H) | mm (in.) | 4,150×7,000×3,200 (163.39×275.59x125.98) |
| Machinery Weight (Net) | kg (lb.) | 18,000 (39,600) |
●STANDARD EQUIPMENT
1.Semi-enclosed Splash Guard (without Roof)
2.X, Y Linear Guide Ways with Z Box Guide Way
3.Telescopic Cover on X and Y axis
4.Cutting Coolant Unit
5.Auto Lubrication System
6.Air Blast Through Spindle Taper
7.Air Blow
8.Spindle Oil Chiller
9.Air Conditioner in Electric Cabinet
10.Hinge Type Chip Conveyor
11.Servo Brake System on Z-axis
12.Duo-driven Servo Motion on X-axis
13.LED Lamp & Alarm Indicator
14.Service Tools & Leveling Bolts
15.Manual Pulse Generator (Hand-wheel)
16.Mechanical & Electrical Operation Manuals
17.Precision Check Data
18.One Year Warranty for Machine under Normal Operation
19.Warranty of Controller depend on Buyer's Location
